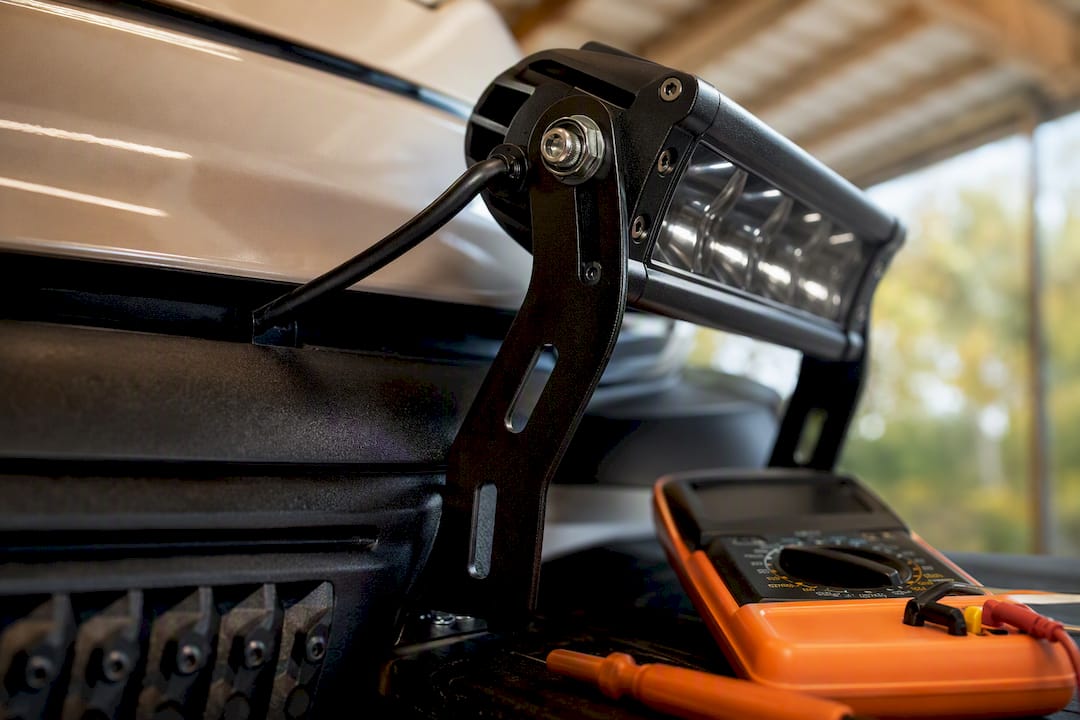

Slotted bracket mounting a golf cart light bar
September 3, 2026 Tom Clark

Keep Voltage Drop Under 3% When Mounting a Light Bar on Golf Carts

For a removable mount on a roll cage, tube bumper, or roof rack, use no-drill O-type clamps. For a permanent, high-speed-ready install on a bumper or frame, bolt-on brackets win every time. Before you touch a drill, confirm the mounting spot clears airbag sensors and sits close enough to the battery that you’re not stretching the wiring harness, and wire the bar through a relay and fuse with the correct gauge for the run.

TL;DR:

  • No-drill clamps are ideal for temporary mounting on roll cages and bumpers, while bolt-on brackets are best for permanent, high-speed installations.
  • Roof mounts offer the longest beam throw but can cause wind noise and voltage drop issues, whereas bumper mounts stay low and are less affected by airflow.
  • Use stainless steel hardware with lock nuts, thread locker, and sealant to prevent rust and ensure secure outdoor mounting, especially under high wind loads.
  • Proper installation includes careful drilling with a stop, precise aiming using a wall method, and regular re-torque checks after initial use to prevent bolt loosening.
  • Electric wiring must incorporate relays, fuses, weatherproof connectors, and proper grounding to avoid switch damage, flickering, and overheating, especially on golf carts.

Table of Contents

Where Should You Mount a Light Bar?

Placement decides how much light you actually see and how much grief you get from wind, debris, and glare. Roof mounts give the longest beam throw and the widest field of view, but they add wind noise and usually need a wiring run long enough to matter for voltage drop. Bumper and grille mounts sit low, stay out of the wind, and pair well with combo beam patterns for a mix of spot and flood coverage.

  • Behind the grille: protected from rocks and low profile, but often limited to smaller single-row bars by clearance.
  • A-pillar or ditch light mounts: great for side fill on trucks and SUVs, though they can throw glare into your own side mirrors if aimed poorly.
  • Roll-cage or tube mounts: the go-to for UTVs and ATVs, ideal for driving-pattern bars aimed straight ahead.
  • Hood hinge mounts: low-profile pods that dodge hood vibration issues but sit close to engine heat.

Golf carts behave differently. Their light roof structure and lack of a traditional bumper mean wiring harness routing and roof-panel support matter more than beam pattern debates.

Which Bracket Style Fits Your Light Bar?

Bracket choice comes down to how much the bar weighs, how often you plan to remove it, and whether your vehicle has a factory mounting point already.

  1. No-drill tube clamps wrap around a roll cage or bull bar with zero permanent modification, making them the top pick for temporary or removable installations on tube bumpers and roll cages.
  2. Bolt-on universal brackets attach through the frame or bumper skin and are the most secure option for heavy double-row bars, since bolted steel resists vibration far better than a clamp under highway wind load.
  3. Vehicle-specific kits are machined to match your exact bumper or roof line, so fitment problems disappear and you skip the fabrication step entirely.
  4. Hood-hinge adapters repurpose the factory hinge bolts for small pod lights, a clean option when you don’t want visible holes.
  5. Magnetic and cradle mounts work fine for occasional-use work lights but shouldn’t carry anything you’re running at highway speed. They shift.

Match a single-row, lighter bar to no-drill clamps or magnetic mounts if you need flexibility. A double-row bar over 20 inches belongs on bolt-on steel or a vehicle-specific kit.

Pro Tip: Choose brackets with slotted mounting holes whenever you can. That half-inch of side-to-side play is what lets you fine-tune the beam angle after the bar is already bolted down, instead of pulling everything apart to shift it two degrees.

What Hardware Actually Holds Up Outdoors?

Cheap zinc-plated bolts rust, seize, and eventually shear under vibration. Stick with 304 or 316 stainless hardware, or Grade 8 fasteners where the bracket calls for high shear strength, and always run lock nuts with a drop of thread locker on every bolt exposed to vibration.

  • Use stainless washers under every bolt head to spread clamping force and stop the bracket from working loose.
  • Seal any drilled hole with RTV sealant, a well-nut, or zinc primer before painted metal starts rusting from the inside out.
  • Check your bracket’s rated load against the wind force a bar generates at highway speed, not just its static weight. A large double-row bar at highway speeds can exert significant lateral stress on mounting bolts.

Manufacturers commonly flag wind noise and vibration fatigue on roof-mounted bars specifically because that combination of load and airflow is what eventually cracks a bracket. A voltage drop target matters here too: keep any 12V circuit under a 3% drop, because a wire pushed past its rated gauge heats up under the same vibration that’s stressing your bolts.

How Do You Install the Bracket Correctly?

Get the mechanical work right and the electrical side goes a lot smoother. Start with a template of the bracket footprint, mark hole locations carefully, and choose a drill bit sized exactly to the bolt diameter

  1. Tape a drill stop onto your bit so you don’t punch through a roof panel’s inner liner or hit wiring hidden behind sheet metal.
  2. Before drilling anything, confirm the spot is clear of airbag sensors, coolant lines, and existing wire looms.
  3. Drill, deburr the hole, and treat any exposed metal with primer before it sees rain.
  4. Torque bolts according to the bracket manufacturer’s specifications, and use lock nuts and thread locker on bolts subject to vibration.
  5. Aim the bar using the 25-foot wall method: park level facing a wall about 25 feet away and set the beam’s hot spot two to four inches below the bar’s horizontal centerline.
  6. Drive it for a weekend, then re-torque every bolt. Vibration always finds the one you almost tightened enough.

Pro Tip: Skipping the re-torque step is the single most common mistake installers make. New hardware settles into paint and gaskets within the first 50 to 100 miles, and a bolt that felt tight on installation day can back off a quarter turn by the following weekend.

What’s the Right Electrical Setup?

A light bar wired straight to a switch without a relay is asking for a melted switch or a fried wire. Run a relay and fuse close to the battery, using the switch only to trigger the relay’s low-current control side while the relay itself carries the heavy load straight from the battery to the light.

  • Match wire gauge to run length: longer roof-mount runs need heavier gauge wire to stay under a 3% voltage drop on a 12V circuit.
  • Route wire along factory looms, use rubber grommets anywhere the harness passes through sheet metal, and zip-tie every few inches to prevent chafing.
  • Use weatherproof connectors, Deutsch-style plugs work well, anywhere the harness sits exposed to spray or road grime.
  • Ground to bare metal. A poor ground connection is the most common cause of flicker and premature LED driver failure, so grind off paint and protect the ring terminal with dielectric grease afterward.

For golf carts specifically, review how relay wiring differs from a truck’s 12V system before you splice into the cart’s existing harness.

How Do You Keep a Light Bar Secure Long Term?

Check every mounting bolt for torque after your first weekend of real driving, then again every couple hundred miles until things stop moving. No-drill clamp mounts especially need periodic checks, since clamps can shift at highway speed if they weren’t torqued or damped correctly the first time.

  • Add rubber harmonic dampeners if you notice roof whistling or bracket fatigue developing over time.
  • If the light flickers, check the fuse first, then the relay, then the ground connection, then harness continuity, in that order.
  • Wipe condensation from the lens housing and clean any breather valve so moisture doesn’t build pressure inside the housing.

When Do Golf Carts Need a Different Approach?

A golf cart’s roof isn’t built like a truck’s roof. It’s thinner aluminum or fiberglass over a light frame, so a mount designed for an F-150 will flex, crack the panel, or simply not fit the bow spacing. Model-specific brackets solve that by matching the exact roof rib pattern on your cart instead of forcing a universal clamp to work.

The electrical side is just as different. Golf carts run on their own low-voltage systems, and getting the relay and grounding right matters just as much as it does on a truck, if not more, since a bad ground on a cart’s smaller wiring gauge shows up as flicker faster. Golfcartstuff’s wiring repair guidance and FAQ and instructions page walk through both issues in cart-specific terms, and they’re worth reading before you order hardware that might not fit your model’s roof bows at all.

— Roshan

Get Model-Matched Mounting Kits and Hardware

Universal brackets get you close, but a kit built for your exact cart model gets you a clean, factory-look install without drilling a test hole first to see if it fits. Mounting hardware and accessory kits sized to specific golf cart platforms are available, so the bolt pattern, bracket length, and included hardware may match your roof or bumper the first time.

Golfcartstuff

Browse the full golf cart accessories collection for light bar mounts, brackets, and hardware packs, or jump straight to parts sorted for your platform, including Club Car DS parts and Yamaha G1 through G22 parts. If you’re not sure which bracket fits your cart’s roof bow spacing or bumper profile, reach out through the site for fitment help before you order, so the hardware in the box is the hardware you actually need.
