Role of Controllers in Speed Control: A Technical Guide

A controller sets and maintains motor speed by converting a speed request into timed power delivery to the motor, adjusting voltage, current, frequency, or PWM duty cycle until actual speed matches the target. That single job produces three outcomes engineers actually care about: precision (the motor holds the requested speed under changing load), protection (fault detection stops damage before it happens), and efficiency (matching output to demand instead of wasting energy on mechanical throttling).

Controllers regulate speed, torque, direction, and starting behavior while providing fault protection for the motor and load. That’s the whole job description in one sentence, but the mechanics behind it vary enormously by motor type and application.

• Precision: closed-loop controllers correct speed error in milliseconds, holding RPM within a tight band even as load torque swings.
• Reduced mechanical stress: soft-start ramps eliminate the current spike and torque shock of across-the-line starting.
• Energy savings: because fan and pump power scales with the cube of speed, a modest RPM cut yields an outsized power reduction, with a 20% speed reduction nearly halving power draw in ideal centrifugal loads.
• Protection and diagnostics: modern drives log current, temperature, and fault codes, catching problems before a motor fails outright.

Pro Tip: If you’re troubleshooting a system with inconsistent speed, check the controller’s fault log before you touch the motor. Most modern drives store the last several faults, and that history usually points straight at the failure mode.

Key Takeaways

A controller’s core job is converting a speed setpoint into timed power delivery while protecting the motor and system from faults along the way.

Point	Details
Controllers set speed through power delivery	Voltage, current, PWM duty cycle, or AC frequency get manipulated to match actual speed to the setpoint.
Closed-loop beats open-loop under variable load	Sensor feedback (encoders, Hall sensors, resolvers) lets the controller correct for load changes in real time.
Algorithm choice depends on precision needs	PID suits general control, FOC delivers dynamic torque response, V/Hz stays simple and robust for industrial motors.
Protection features often outlast the speed benefit	Overcurrent, thermal, and fault-logging features prevent failures that raw speed control alone can’t address.
Golfcartstuff supplies cart-specific controllers	Controllers sorted by make and voltage class remove the compatibility guesswork of generic industrial drives.

Table of Contents

• The Role of Controllers in Speed Control: How the Mechanisms Work
• What Types of Speed Control Systems Are Available?
• Open-Loop vs Closed-Loop: What Role Do Sensors Play?
• Which Control Algorithm Actually Regulates the Speed?
• What Else Do Controllers Do Besides Regulate Speed?
• How to Choose the Right Speed Controller for Your Application
• How Do You Tell if a Speed Controller Is Failing?
• How Does a Controller Manage Golf Cart Speed in Practice?
• Speed Control Concepts Recap and Next Steps
• Where to Learn More About Controllers and Speed Regulation
• An Editorial Take on Where Controllers Get Underestimated
• Ready to Match a Controller to Your Cart?
• Frequently Asked Questions
• Sources

The Role of Controllers in Speed Control: How the Mechanisms Work

Controllers don’t spin a motor faster by magic. They manipulate one or more of four electrical variables: voltage, current, pulse width, or frequency. Which one gets manipulated depends entirely on whether you’re driving a brushed DC motor, a brushless DC (BLDC) motor, or an AC induction or permanent-magnet motor.

For DC and BLDC motors, controllers use pulse width modulation (PWM). A power transistor, typically a MOSFET or IGBT, switches the supply voltage on and off thousands of times per second. The ratio of “on” time to total cycle time, the duty cycle, sets the average voltage the motor sees. This is the same basic principle behind golf cart speed controllers, which chop battery voltage to meter power to the drive motor.

AC motors work differently because their speed is tied to the frequency of the supply, not the voltage alone. A variable-frequency drive (VFD) contains three stages: a rectifier that converts incoming AC to DC, a DC bus that stores and smooths that voltage, and an inverter (built from IGBTs or increasingly silicon carbide devices) that synthesizes a new AC waveform at whatever frequency the application needs. Motor speed follows a simple relationship: RPM equals 120 times frequency divided by the number of motor poles. Push the frequency from 60 Hz to 45 Hz on a 4-pole motor and synchronous speed drops from 1,800 RPM to 1,350 RPM.

The signal path in nearly every drive follows the same block-level structure: a speed setpoint enters the controller, the control algorithm compares it against feedback (or an internal model), computes an error, and outputs a switching pattern to the power stage, which then drives the motor. A closed-loop V/Hz architecture generates a corrected frequency command using a PI controller and a measured speed signal, closing that loop continuously.

VFDs also explain why the cube law matters so much in fluid systems. Because the power a pump or fan consumes rises with the cube of its speed, and AC drives adjust frequency directly rather than throttling flow mechanically, a facility running a fan at 80% speed instead of 100% isn’t saving 20% on energy.

What Types of Speed Control Systems Are Available?

Not every controller is built the same way, and matching the wrong type to a motor wastes money or, worse, damages equipment. The major families break down by motor type and how much precision the application demands.

Electronic speed controllers (ESCs) drive BLDC motors using commutation logic that energizes stator windings in sequence, often using Hall sensors or back-EMF sensing to know rotor position. They’re common in drones, RC vehicles, and small robotics because they’re compact and cheap for the performance they deliver. Brushed DC controllers are simpler still, a PWM chopper circuit with no commutation logic needed since the brushes handle that mechanically, making them a staple in low-cost fans, pumps, and some entry-level golf cart applications.

VFDs and adjustable-speed drives dominate industrial AC motor applications, from simple V/Hz control for conveyors to sensorless vector and full closed-loop vector control for applications needing tight torque regulation. Servo controllers push further, pairing a controller with a high-resolution encoder for position and velocity accuracy measured in fractions of a degree, the standard choice in CNC machines and robotic arms. Stepper drivers take a different approach entirely, moving the motor in discrete steps rather than continuous rotation, which suits 3D printers and precision positioning stages where open-loop repeatability is good enough. Soft starters sit in a category of their own: they don’t provide continuous speed control at all, just a controlled ramp-up (and sometimes ramp-down) to limit inrush current on motors that otherwise run at fixed speed.

Controller type	Best for	Key trade-offs
ESC / BLDC controller	Drones, RC vehicles, small robotics	Compact and efficient, but needs commutation feedback (Hall or back-EMF)
Brushed DC controller (PWM chopper)	Low-cost fans, pumps, basic golf carts	Simple and cheap, limited torque control at low speed
VFD / adjustable-speed drive	Pumps, fans, conveyors, industrial motors	Excellent energy savings, V/Hz is simple but sensorless vector adds cost
Servo controller	CNC machines, robotic arms, precision motion	High accuracy, but requires an encoder and higher cost
Stepper driver	3D printers, positioning stages	Precise open-loop stepping, can lose steps under sudden load
Soft starter	Fixed-speed motors needing controlled startup	Reduces inrush current, but provides no ongoing speed regulation

Open-Loop vs Closed-Loop: What Role Do Sensors Play?

Open-loop control sends a command and trusts the motor to comply. Closed-loop control measures what the motor is actually doing and corrects the difference. That distinction shapes everything from cost to accuracy to how a system behaves when load changes unexpectedly.

An open-loop drive, like a basic V/Hz VFD running a conveyor, sets a frequency and voltage ratio and assumes the motor tracks it. It’s cheaper, simpler to wire, and fine for loads where speed accuracy within a few percent doesn’t matter. But under heavy or variable load, an open-loop system can’t tell you if the motor has actually slowed down, stalled, or is fighting excess torque. Closed-loop control fixes that blind spot by feeding a real speed or position signal back into the controller, letting it continuously correct the output.

• Incremental encoders report relative position and speed via pulse counts; cheap and common but they lose absolute position on power loss.
• Absolute encoders retain position data even after a power cycle, useful in servo and robotic applications where “homing” every startup isn’t practical.
• Hall sensors detect rotor magnet position in BLDC motors, providing coarse but reliable commutation feedback at low cost.
• Tachometers generate a voltage or frequency proportional to shaft speed, a simple analog feedback method still used in some industrial drives.
• Resolvers are rugged, analog rotary transformers favored in harsh environments like electric vehicle traction motors where encoders might fail from heat or vibration.

The feedback loop itself follows a consistent structure: a setpoint enters the controller, the controller compares it to the sensor’s reported speed, computes the error, adjusts the actuator (the power stage), and the sensor reports the new resulting speed back to close the loop. Sensorless techniques, which estimate rotor position from back-EMF or current signatures instead of a physical sensor, are appropriate for cost-sensitive applications where load is stable and low-speed torque isn’t critical. They fall apart at very low speeds or standstill, where the back-EMF signal is too weak to read reliably.

Approach	Speed accuracy	Cost	Best for
Open-loop	Moderate, drifts under load	Low	Fans, conveyors, simple pumps
Closed-loop with encoder	High, corrects continuously	Moderate to high	Servo motion, precision spindles
Sensorless vector	Good at mid-to-high speed only	Moderate	Cost-sensitive VFD applications

Which Control Algorithm Actually Regulates the Speed?

The algorithm is the brain doing the math between the setpoint and the power stage, and picking the right one matters more than most spec sheets suggest. Three families cover the vast majority of real-world speed control: PID/PI, field-oriented control (FOC), and V/Hz.

PID (proportional-integral-derivative) control computes the error between requested and actual speed and applies a corrective output shaped by three tunable terms. PID remains the foundational method for precision speed regulation in robotics and industrial control because it’s computationally cheap and well understood. The proportional term drives immediate response to error, the integral term eliminates the steady-state error a proportional-only system would leave behind, and the derivative term dampens overshoot by reacting to how fast the error is changing.

Field-oriented control goes further for applications needing sharp torque response. FOC uses Clarke and Park transformations to convert three-phase stator currents into a rotating reference frame, mathematically separating the torque-producing current from the flux-producing current. That decoupling is why vector control delivers dynamic torque response that simple PWM or V/Hz control can’t match, at the cost of needing more processing power and, for full closed-loop vector control, position feedback from an encoder or resolver.

V/Hz control keeps the ratio of voltage to frequency constant as it varies both, which keeps motor flux roughly constant and torque capability reasonably stable across the speed range. It’s simple, robust, and doesn’t require the same processing overhead as FOC, which is why it remains the default choice for industrial induction motors in fans, pumps, and conveyors where dynamic torque response isn’t the priority.

Algorithm	Performance	Sensor needs	Typical uses
PID/PI	Good general-purpose response	Speed or position feedback	Servo loops, robotics, precision drives
FOC/vector control	High dynamic torque response	Encoder or resolver (or sensorless estimation)	Electric vehicles, robotics, high-performance BLDC
V/Hz (open-loop)	Moderate, stable at mid-to-high speed	None required	Industrial fans, pumps, conveyors

Multi-loop drives commonly nest these controllers: an inner current loop, a middle speed loop, and an outer position loop each run their own PI compensator, tuned from the inside out so the fastest loop stabilizes before the slower outer loops are closed.

Pro Tip: If your drive supports autotune, use it as a starting point, not a final answer. Autotune algorithms optimize for a generic load model, so a system with unusual inertia or backlash almost always needs manual trim afterward. And be cautious applying classic Ziegler-Nichols tuning to a system with high inertia. It tends to overshoot badly before it settles.

What Else Do Controllers Do Besides Regulate Speed?

Speed regulation gets the headline, but protection and diagnostics are often what actually save money over a motor’s service life. Diagnostics and monitoring capabilities have turned modern controllers into system-health tools rather than simple speed knobs, and that shift matters more with every generation of drive.

• Overcurrent and short-circuit protection shut the drive down before winding insulation cooks.
• Overvoltage and undervoltage lockout prevent damage from bus voltage swings or brownouts.
• Thermal protection derates or trips the drive as heatsink or motor temperature climbs.
• Ground-fault detection catches insulation breakdown before it becomes a safety hazard.
• Safe Torque Off (STO) removes torque-producing power without fully de-energizing the control electronics, a standard safety function on industrial servo and VFD systems.

Soft-start ramps deserve their own mention because the payoff is bigger than people expect. Controlled acceleration limits inrush current and mechanical shock at startup, which extends belt, coupling, and bearing life while easing the load on upstream electrical infrastructure. A retrofit case involving VFDs across pumps and fans in a high-rise building cut annual electricity consumption significantly, a reduction driven partly by the cube-law effect on fluid loads and partly by eliminating the losses inherent in mechanical throttling.

Diagnostics extend past simple fault trips. A current signature that shows periodic ripple at a frequency tied to shaft rotation often points to bearing wear long before it becomes audible. A temperature log that trends upward over weeks, even without tripping a fault, flags a cooling fan or airflow path that needs attention. Fault codes that map directly to specific corrective actions, rather than a generic “error” light, are one of the biggest quality differences between a basic controller and an industrial-grade drive.

How to Choose the Right Speed Controller for Your Application

Specifying a controller comes down to matching electrical requirements, mechanical constraints, and budget. Skip any one of these and you either overpay for capability you don’t need or underspec a drive that trips constantly.

1. Confirm motor type and power rating. DC, BLDC, or AC induction motors need fundamentally different controller architectures, and the controller’s continuous current rating must exceed the motor’s full-load current with margin.
2. Match supply voltage and frequency. A controller built for 48-volt DC won’t run a 96-volt system, and AC drives need to match line voltage and phase count.
3. Define the required speed and torque range. Applications needing high torque at very low speed usually rule out simple V/Hz control and push toward vector control.
4. Decide on feedback requirements. If the application needs tight speed or position accuracy, budget for an encoder or resolver and closed-loop control from the start.
5. Check environmental rating. Outdoor or wash-down environments need an appropriate IP rating, and confirming full-load current against the thermal environment prevents nuisance trips.
6. Verify communication and I/O needs. Industrial installations often require Modbus, CANopen, or analog I/O to integrate with a PLC or SCADA system.
7. Confirm safety features match the application. STO, emergency stop wiring, and lockout capability are non-negotiable on anything with exposed moving parts.

A quick decision rule that holds for most readers: if your precision requirement is loose (a fan, a pump, a conveyor that just needs to run at a rough speed), V/Hz control on a basic VFD is the economical answer. If you need tight torque control at low speed or fast dynamic response, budget for vector control with encoder feedback from the start rather than retrofitting later.

Cooling and enclosure selection often get treated as an afterthought, and that’s a mistake. Drives derate output current as ambient temperature rises, so a controller that looks adequately sized on paper can trip on hot days in a poorly ventilated cabinet. Harmonic distortion from the rectifier stage and electromagnetic interference (EMC) from high-frequency switching are worth a line-filter or shielded-cable conversation with your supplier before installation, not after a nearby sensor starts glitching.

How Do You Tell if a Speed Controller Is Failing?

Symptoms usually show up before total failure, and reading them correctly saves a lot of unnecessary part-swapping. Speed fluctuation under steady load often points to a feedback problem or a loose connection rather than a dead controller. A motor that won’t start at all but hums or clicks usually means the controller is receiving power but a fault condition, an internal relay, or an output stage failure is blocking drive output. Overheating combined with intermittent shutdowns typically traces back to airflow blockage, a failing cooling fan, or a controller that’s undersized for the actual load.

1. Start with a visual inspection. Look for bulging or leaking capacitors on the DC bus, scorch marks, loose terminal connections, and dust buildup blocking airflow.
2. Check the fault log or firmware history. Most modern drives store the last several fault events, and repeated identical faults point straight at the root cause.
3. Measure voltage and current at the terminals. Compare readings against the motor’s nameplate values to confirm the controller is actually delivering what it reports.
4. Verify sensor wiring and signal integrity. A corrupted encoder signal from noise or a damaged cable often mimics a controller fault, so isolate the sensor before condemning the drive.
5. Isolate the motor and bench-test the controller if possible. Running the controller into a dummy load or a known-good motor separates a controller problem from a motor problem quickly.

Bad electrolytic capacitors on the DC bus are one of the single most common controller failures, especially in drives that run hot or have been in service more than five years. They show up as ripple, unstable output, or complete failure to hold DC bus voltage. Thermal derating that looks like a “weak” controller is often just an airflow or ambient temperature problem, easily confirmed with an infrared thermometer on the heatsink. Encoder wiring faults, particularly cables run alongside high-current power leads, are a classic source of intermittent speed errors that read like a controller defect but aren’t. For deeper troubleshooting steps specific to golf cart drive systems, this guide to resolving speed issues walks through common failure patterns.

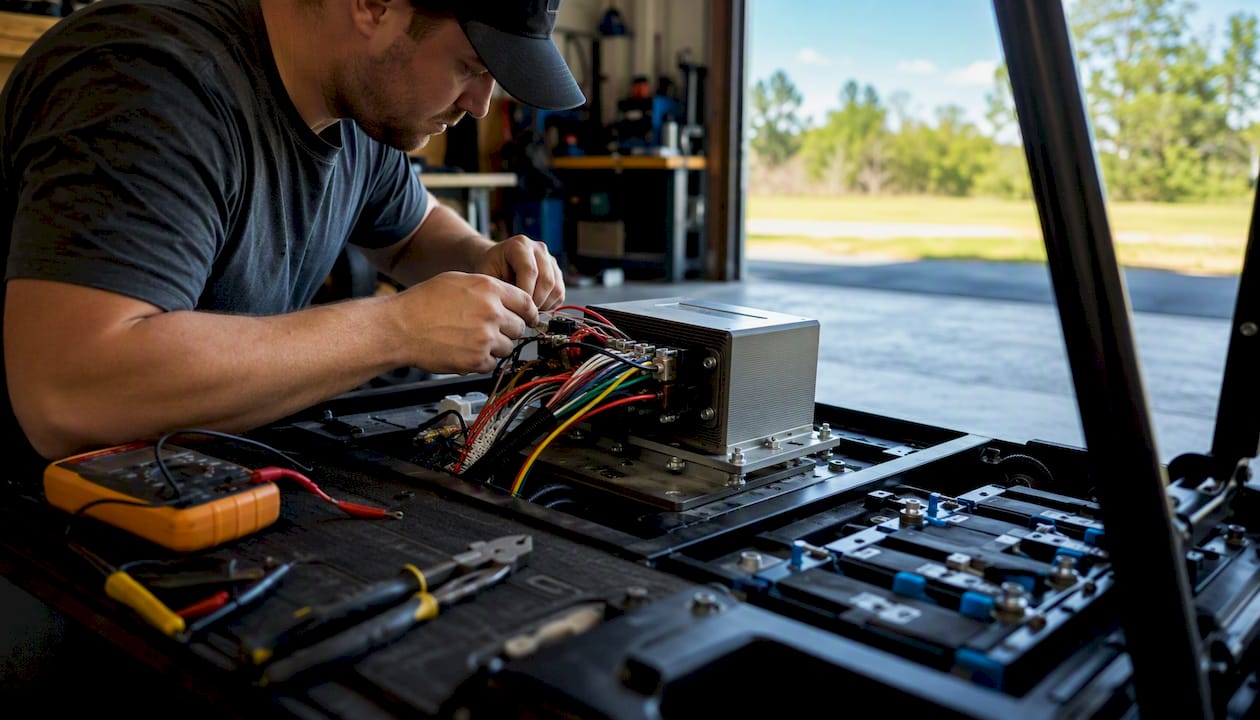

How Does a Controller Manage Golf Cart Speed in Practice?

Golf carts are a genuinely useful case study because they compress every concept above into a system small enough to fully understand. Most golf carts run either a series-wound or permanent-magnet DC motor, or increasingly a BLDC motor, off a 36 or 48 volt battery pack.

Selecting the right controller starts with identifying motor type and voltage, since a controller rated for a 36-volt series DC motor won’t safely run a 48-volt BLDC system. From there, the choice comes down to a DC chopper controller for brushed motors, a BLDC-style ESC for brushless setups, or a purpose-built golf cart controller that bundles both speed regulation and cart-specific protections like reverse interlock and battery discharge protection. Once the controller is matched to the motor, configuration is where the real tuning happens: acceleration and deceleration ramps get set to balance responsiveness against jackrabbit starts, and torque limits get dialed in to protect the drivetrain on hills or heavy loads.

• Confirm motor voltage and current rating before ordering a replacement controller.
• Mount the controller where airflow is unobstructed and away from direct water spray.
• Route power cables and control/signal wiring in separate loom runs wherever possible.
• Verify E-stop and interlock wiring (forward/reverse switch, brake pedal safety switch) before first power-up.
• Test acceleration ramps at low speed in a clear area before full-throttle operation.

Pro Tip: Keep encoder and low-signal control cables physically separated from power switching wires. Routing sensor cables away from PWM switching traces prevents induced electrical noise that mimics an intermittent controller fault, one of the most common and most misdiagnosed installation mistakes.

For step-by-step wiring and mounting procedures, this installation guide for DIY owners covers the process in more depth than fits here, and this guide to golf cart controllers explains how to match controller specs to your specific cart model. Always disconnect the battery pack before working on controller wiring, and confirm interlock safety switches function correctly before returning the cart to service.

Speed Control Concepts Recap and Next Steps

Speed control comes down to one core mechanism (converting a setpoint into timed power delivery) executed through different algorithms and hardware depending on motor type, precision needs, and budget.

• Controllers regulate speed by manipulating voltage, current, PWM duty cycle, or AC frequency, depending on motor type.
• Closed-loop control with sensor feedback is required whenever load varies unpredictably or precision matters.
• PID, FOC, and V/Hz each serve different performance tiers. Matching the algorithm to the application avoids overpaying or underperforming.
• Protection and diagnostic features (thermal, overcurrent, fault logging) often deliver more value over a motor’s life than raw speed regulation.
• Soft-start ramps and VFD retrofits on fluid-handling loads consistently deliver measurable energy savings through the cube-law effect.

1. Run a basic speed-loop test on your current system and log actual versus commanded speed under load.
2. Enable and review the controller’s built-in diagnostics or fault history if you haven’t already.
3. For pumps, fans, or conveyors still running fixed-speed, evaluate a VFD retrofit against your current energy costs.

Where to Learn More About Controllers and Speed Regulation

A handful of technical references cover the concepts in this article in more depth, useful if you’re specifying a system rather than just troubleshooting one.

• Machine elements in mechanical design overview lays out the core functions every motor controller performs, a solid primer before diving into any single algorithm.
• NXP’s V/Hz closed-loop application note walks through the actual PI-based control math behind closed-loop AC drives, including the cascaded loop structure engineers use for tuning.
• Wevolver’s controller types and strategies guide compares PWM, vector control, and V/F approaches with practical selection guidance.
• United Automation’s soft-start explainer breaks down inrush current reduction and the retrofit case behind the 32% energy savings figure cited earlier.
• Precision-Elec’s AC motor speed controller guide covers selection criteria like voltage class, duty rating, and thermal environment in more granular detail than fits in a single article.

An Editorial Take on Where Controllers Get Underestimated

Most explanations of motor controllers treat them as a speed dial, a device that makes the motor go faster or slower on command. That framing misses where the actual engineering value sits. The protection and diagnostic layer, not the raw speed regulation, is usually what determines whether a system survives five years of service or fails in eighteen months. A controller that trips cleanly on an overcurrent fault instead of letting a winding cook is doing more for total cost of ownership than any tuning improvement to its speed loop ever will.

There’s also a persistent mismatch between what hobbyists assume closed-loop control buys them and what it actually delivers. Adding an encoder doesn’t automatically fix a sloppy mechanical system. It corrects for load variation the algorithm can measure, not for backlash, belt slip, or resonance the sensor can’t see. Plenty of DIY conversions, golf cart builds included, chase precision with better feedback hardware when the real problem is a worn coupling or an undersized controller getting thermally derated under load. Diagnose the mechanical system honestly before assuming the electronics need an upgrade. For hands-on installation context, Golfcartstuff’s speed control and compliance guide covers where that distinction tends to trip people up in real cart builds.

Ready to Match a Controller to Your Cart?

If you’ve read this far, you already understand more about controller selection than most people shopping for a replacement part cold. The next step is matching that knowledge to hardware that fits your specific cart, and that’s where a general electronics supplier falls short: golf cart controllers need cart-specific voltage compatibility, mounting footprints, and connector types that generic industrial drives don’t account for.

Golfcartstuff stocks controllers and replacement parts built for the voltage classes and mounting patterns actual golf carts use, sorted by make so you’re not guessing at compatibility. Before you shop, confirm four things: motor voltage (36V or 48V), connector type on your existing harness, continuous current rating needed for your terrain and load, and the physical mounting footprint under your cart’s seat deck. With those four numbers in hand, browse Club Car DS parts or Yamaha G1 through G22 parts to find a controller that matches your cart without the compatibility guesswork of a generic industrial supplier.

Frequently Asked Questions

What is the main role of controllers in speed control? Controllers convert a speed request into a timed electrical output, adjusting voltage, current, PWM duty cycle, or frequency so the motor’s actual speed tracks the commanded speed, while also protecting the motor from overcurrent, overheating, and other faults.

How do controllers manage speed differently for DC versus AC motors? DC and BLDC controllers use PWM to set average voltage through duty cycle, while AC controllers (VFDs) generate a new frequency and voltage waveform through a rectifier-inverter stage, since AC motor speed is tied directly to supply frequency.

Do I need closed-loop control for my application? Closed-loop control is worth the added cost when load varies unpredictably or when precision matters, such as robotics or CNC motion. Fixed, predictable loads like basic fans or conveyors usually run fine on simpler open-loop V/Hz control.

What’s the difference between PID and FOC control? PID corrects speed error using proportional, integral, and derivative terms and works well for general-purpose speed loops. FOC (field-oriented control) mathematically separates torque-producing and flux-producing current for much sharper dynamic torque response, at the cost of more processing and often an encoder.

How can I tell if my speed controller is failing versus a wiring or sensor problem? Check the fault log first, then measure voltage and current at the terminals against the motor’s nameplate values. Speed fluctuation with intact wiring often points to feedback signal noise rather than a failed controller.

Do speed controllers actually save energy? Yes, particularly on fans and pumps, because power scales with the cube of speed. Modest speed reductions can nearly halve power consumption in centrifugal loads, which is why VFD retrofits on HVAC and pump systems tend to have fast payback periods.
