Step-by-Step Tire Alignment: DIY Guide for Accurate Toe

by Tom Clark August 09, 2026

You can absolutely perform a reliable toe adjustment at home. The short version: measure the front-to-rear distance across your tires, adjust the tie-rod sleeves, roll the car, re-measure, and torque the jam nuts. Camber and caster are a different story. Most modern vehicles have no factory adjustment for those angles, so if they’re out of spec, you’re looking at aftermarket hardware or a shop visit, not a wrench on a tie-rod.

One non-negotiable before you touch anything: inspect your steering and suspension components first. Worn tie-rod ends, loose ball joints, or a bent control arm will make any alignment work pointless and potentially dangerous. Fix the mechanical problems first, then align.

Key Takeaways

A reliable DIY toe alignment requires a level surface, repeatable reference points, rolling the vehicle after every adjustment, and replacing worn suspension parts before touching the tie-rods.

Point Details
Toe is the DIY angle Camber and caster usually require special hardware or a shop; focus your home work on toe.
Inspect before you adjust Replace worn tie-rod ends, ball joints, or bent control arms before any alignment attempt.
Roll the car every time Roll the vehicle forward and back after each tie-rod adjustment before re-measuring.
Quarter-turn increments Adjust tie-rod sleeves in quarter-turn steps and re-measure; small changes add up quickly.
Shop check after DIY work A professional 3D alignment confirms all angles meet factory tolerances, especially for daily drivers.

Table of Contents

What tools do you need for a step-by-step tire alignment?

You don’t need a lift or a $10,000 machine. Here’s what actually matters:

Essential tools:

  • Tape measure (at least 6 feet)
  • Two lengths of string or two jack stands to anchor them
  • Floor jack and two adjustable jack stands
  • Wheel chocks (at least two)
  • Wax pencil or paint marker
  • Open-end wrenches for tie-rod jam nuts
  • Torque wrench
  • Vehicle repair manual or OEM spec sheet

Helpful but optional:

  • Digital angle gauge or camber/caster gauge
  • DIY toe plates (two flat boards with tape measures attached)
  • Laser alignment tool (accurate but pricier)

Consumables and safety gear:

  • Nitrile gloves, safety glasses, flashlight

Pro Tip: The string method is the most repeatable low-cost approach. Two lengths of string stretched parallel to the vehicle’s centerline, squared to the rear axle, give you a fixed reference plane that tape alone can’t match. Start there before spending money on gauges.

Safety checklist and vehicle prep before you start

Work on a flat, level concrete surface. A crowned or sloped driveway introduces measurement error before you’ve even picked up a wrench, and a squared string rig on a sloped surface will give you false readings every time.

Run through this before touching any adjustment:

  1. Set tire pressure to the manufacturer’s spec on all four tires. Uneven pressure changes ride height and skews toe readings.
  2. Remove heavy cargo from the trunk and cabin.
  3. Center the steering wheel and secure it with a wheel-holder or a bungee cord to the seat.
  4. Apply the parking brake and chock the rear wheels.
  5. Mark a reference point on each front tire’s tread or sidewall with a wax pencil so your measurement points stay consistent across multiple readings.

Then inspect the steering and suspension before any adjustment. Check for play in the tie-rod ends by grabbing each front tire at 9 and 3 o’clock and pushing/pulling. Check ball joints by placing a pry bar under the tire and watching for vertical movement. Look for torn boots, bent control arms, and uneven ride height side to side. Worn components must be replaced before aligning. Aligning a car with a loose ball joint is like straightening a picture frame on a wall that’s about to fall over.

What do camber, caster, toe, and thrust angle actually mean?

Four angles govern how your wheels sit and track. Knowing which ones you can adjust at home saves time and prevents frustration.

  • Toe: Whether the fronts of the tires point inward (toe-in) or outward (toe-out) when viewed from above. This is the angle you can adjust at home on virtually every vehicle.
  • Camber: The inward or outward tilt of the tire when viewed from the front. Negative camber means the top leans in; positive means it leans out. Most modern vehicles have no factory camber adjustment.
  • Caster: The angle of the steering axis when viewed from the side. It affects straight-line stability and steering return. Also rarely adjustable without aftermarket parts.
  • Thrust angle: The direction the rear axle points relative to the vehicle centerline. Thrust angle problems often require axle or frame work at a shop.

The practical takeaway: toe is your target. Camber, caster, and toe interact, so excessive camber on one side often signals deeper suspension damage. Don’t try to compensate for a camber problem by tweaking toe.

Common symptoms by angle:

  • Uneven shoulder wear on one tire: camber issue
  • Feathering or sawtooth wear across the tread: toe issue
  • Pulling to one side on a straight road: toe or thrust angle
  • Steering wheel doesn’t return after a turn: caster issue

OEM tolerances vary by vehicle. A typical street car runs somewhere around 0 to 1/8 inch of total toe-in, but always pull the actual spec from your repair manual before measuring.

How to measure toe at home: string method and tape method

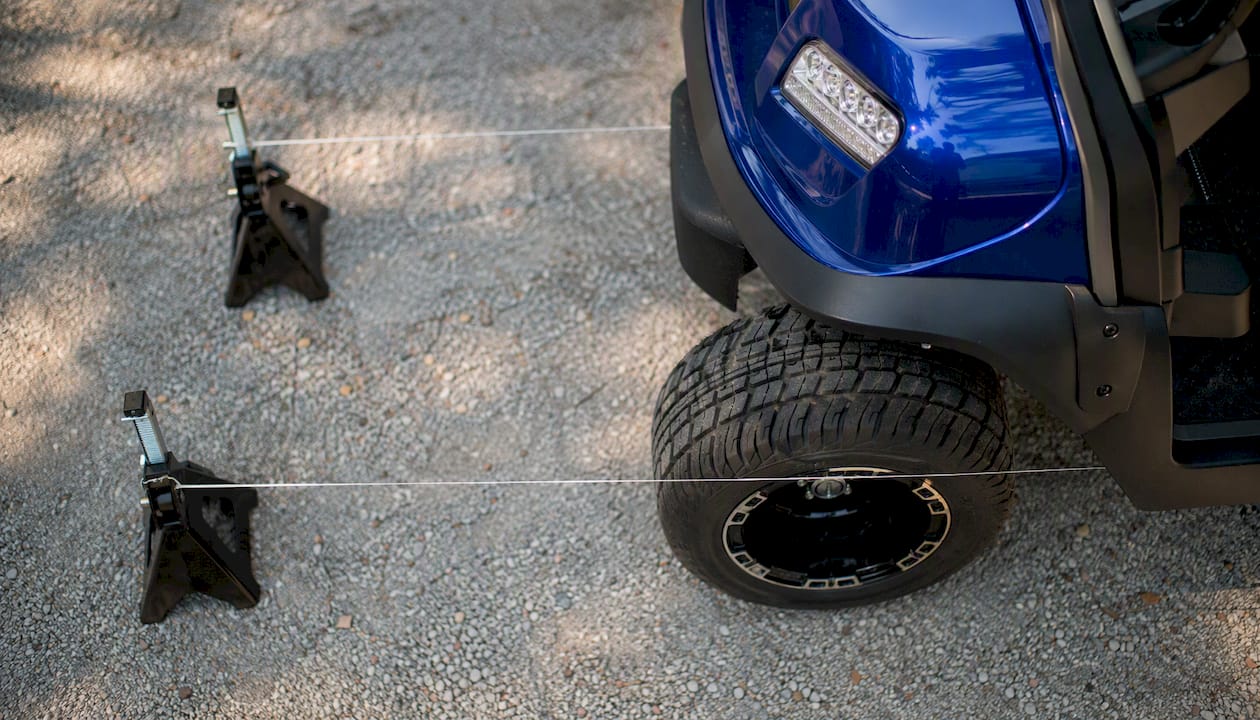

String method

Stretch two strings parallel to the vehicle’s centerline, one on each side, anchored to jack stands at bumper height. Square them to the rear axle by measuring equal distances from the rear wheel centers to each string. Once squared, measure the gap between the string and the front of each front tire’s rim, then the rear of each rim. The difference between front and rear measurements is your toe value for that wheel.

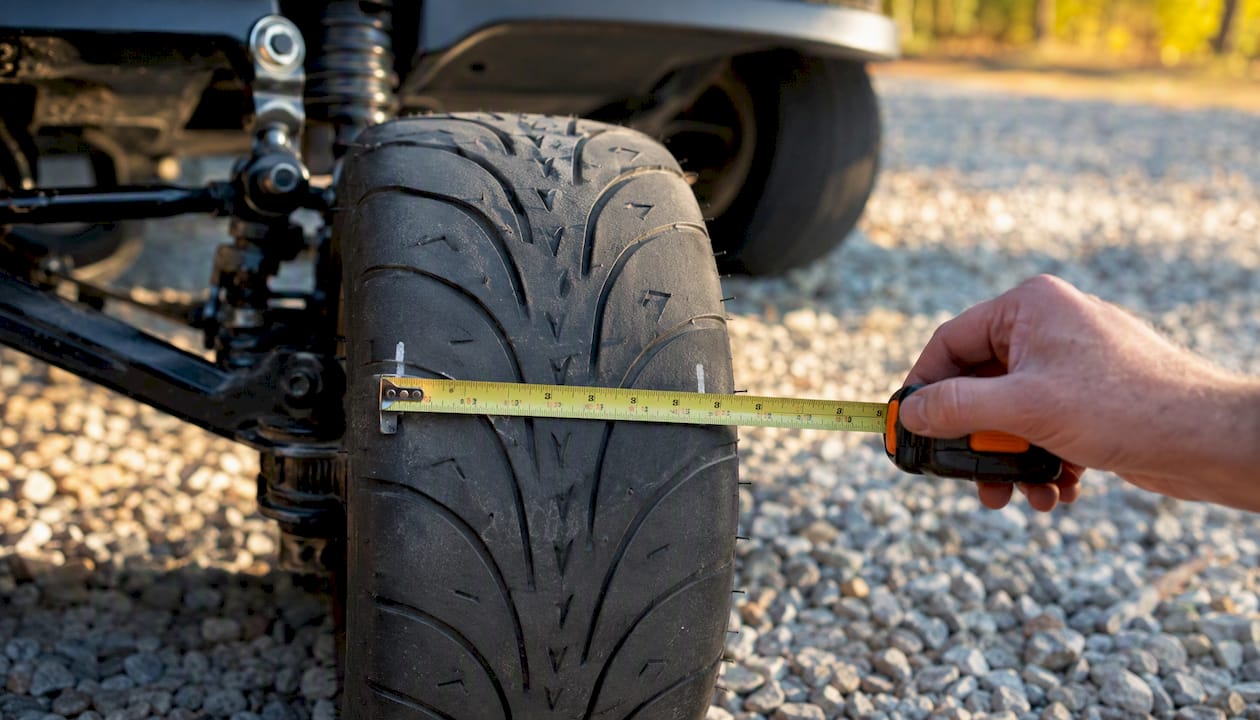

Tape-measure method

Mark two points on each front tire’s tread at hub height: one facing forward, one facing rearward. Measure the distance between the two front-facing marks (front measurement), then between the two rear-facing marks (rear measurement). Subtract front from rear to get total toe.

Repeatability matters. After every adjustment, roll the vehicle forward and back several feet before re-measuring. This lets the steering linkage settle into its natural position. Skipping this step is the single most common reason DIY alignments produce inconsistent numbers.

Hot tires expand slightly and can affect readings. Measure on cold tires whenever possible.

Step-by-step toe adjustment procedure

  1. Confirm prep: Tire pressures set, steering centered and secured, wheel chocks in place, reference marks applied.
  2. Measure current toe using your chosen method. Record the front and rear measurements for both the left and right sides. Write them down.
  3. Identify which side needs adjustment. If the left front reads more toe-out than spec, you’ll adjust the left tie-rod.
  4. Loosen the jam nut on the tie-rod adjuster sleeve. Use the correct open-end wrench and break it loose without rotating the sleeve itself.
  5. Turn the adjuster sleeve in small increments. Rotating the sleeve inward (threading the tie-rod end in) increases toe-in; rotating outward increases toe-out. Work in quarter-turn increments and expect a noticeable but small change in your measurement per turn. Mark the sleeve with a paint marker before you start so you can track how far you’ve turned it.
  6. Roll the vehicle forward and back at least three feet before re-measuring. Do not skip this.
  7. Re-measure and compare to spec. Repeat steps 5 and 6 until both sides are within the OEM tolerance.
  8. Re-center the steering wheel if it has drifted. If you can’t center it without throwing one side out of spec, stop and reassess.
  9. Torque the jam nuts to the manufacturer’s specification. Under-torqued jam nuts back off on the road; over-torqued ones can crack the sleeve.
  10. Stop immediately if you notice binding when turning the wheel, excessive play that wasn’t there before, or if the adjuster won’t hold its position.

A reliable DIY process always ends with a shop check when possible, particularly if you’ve done significant suspension work.

Final checks and test-drive verification

Re-measure both front wheels after torquing the jam nuts. Confirm the front-to-rear differences match your target spec on both sides. Turn the steering wheel lock to lock by hand with the vehicle on stands. It should move smoothly with no binding or rough spots.

For the test drive, find a straight, flat road with no crown. Drive at low speed first, then highway speed if conditions allow. Watch for:

  • Pulling to either side on a straight road
  • Steering wheel sitting off-center at highway speed
  • Any vibration or shimmy that wasn’t present before

If the steering wheel is noticeably off-center after the adjustment, don’t compensate by adding more toe to one side. That masks the real problem. Check whether camber or caster is pulling the wheel, or whether the rear thrust angle is the culprit. Professional 3D alignment machines catch these interactions precisely, which is why a shop visit after DIY toe work is worth the cost for daily drivers.

When should you stop and see a professional?

Inspect before you align. Replace before you adjust. Specifically, stop and get professional help when you find:

  • Play in tie-rod ends or ball joints
  • Torn CV or ball-joint boots
  • Bent control arms or subframe damage
  • Uneven ride height side to side (more than 1/2 inch difference)
  • Wheel bearing play

Red flags during or after the adjustment:

  • Camber or caster is out of spec with no factory adjustment available (requires camber bolts, adjustable control arms, or subframe correction)
  • Rear thrust angle is off (frame or axle work required)
  • Steering still pulls after correct toe is set
  • Vehicle has ADAS features (lane-keep assist, automatic emergency braking) that require a steering-angle sensor reset after alignment. That reset requires a scan tool and often a shop.

Shops use 3D imaging systems that measure all four wheels simultaneously against the vehicle’s actual centerline. No string rig replicates that. For a daily driver, a professional alignment after DIY toe work confirms you haven’t introduced a secondary problem.

How often should you check alignment?

Check alignment after any of these events: hitting a significant pothole or curb, completing suspension work, noticing new pulling or uneven wear, or as part of annual maintenance. Bridgestone recommends routine checks that include tire pressure, suspension inspection, and alignment verification, especially after impacts.

Between full checks, three habits extend alignment life: rotate tires on schedule, keep tire pressure at spec, and inspect suspension wear items (tie-rod ends, ball joints, control arm bushings) at every oil change. Tire balancing is a separate service from alignment. Balancing corrects wheel vibration from mass imbalance; alignment corrects the angle the wheel sits and tracks. Confusing the two leads to fixing the wrong problem.

Golf cart alignment: what’s different for your cart?

Golf carts share the same alignment principles as passenger cars but with simpler suspension geometry. Most carts use a solid front axle or a basic A-arm setup with limited adjustment points. Toe is still the primary DIY-adjustable angle, and the string and tape methods work just as well on a cart as on a car.

A few things to watch specifically on golf carts:

  • Idler arm wear is common and often overlooked. A worn idler arm introduces play that makes any toe adjustment unstable.
  • Lift kits change geometry. If you’ve installed a lift, check how it affects your steering geometry before assuming factory toe specs still apply.
  • Lug nut torque after lift installation is a frequent miss. Loose lug nuts cause wheel movement that mimics misalignment symptoms.
  • EZGO, Club Car, and Yamaha each have model-specific tie-rod configurations. Always pull the torque spec for your exact model year before tightening jam nuts.

Golfcartstuff’s golf cart steering alignment guide covers model-specific procedures and torque specs in detail. For suspension wear items, the golf cart suspension troubleshooting guide is a practical starting point before any alignment attempt.

Pro Tip: Before adjusting toe on a cart with a recent lift kit, check the alignment basics guide for small vehicles to confirm whether your specific lift changes the factory toe spec. A lift that adds two inches of height can shift the geometry enough that the stock spec no longer applies.

What most DIYers get wrong about home alignment

The biggest mistake isn’t the measurement method. It’s skipping the roll. Every experienced DIYer who has done home alignments has made this mistake at least once: adjusted the tie-rod, measured immediately, declared success, and then driven the car only to find it still pulling. The steering linkage needs to settle. Roll the car. Every single time.

The second most common problem is inconsistent reference points. If your tape measure lands on a different spot on the tread each time, your numbers are meaningless. Mark the exact measurement point with a wax pencil and hit it every time.

One practical shortcut that holds up: before loosening any jam nut, count the exposed threads on the tie-rod end and write it down. If you overshoot your adjustment, you have an exact reference point to return to without guessing.

Log your measurements in a notebook or a phone note. Knowing your baseline toe from six months ago tells you whether a new symptom is a drift from a previous setting or something mechanical.
